Peel Ply
Peel Ply is a fabric frequently used in the composite manufacturing process.
High Temperature Resistance & Tear Resistance: Peel Ply is suitable for extreme high temperature applications due to its high temperature resistance and high strength. The peel ply is manufactured with advanced technology to ensure that the surface is clean and pollution-free. It also has good tear resistance, making it durable and long-lasting.
Stomata Control: Peel Ply absorbs excess resin, thereby reducing the formation of pores. This helps increase the strength and durability of the composite.
Anti-pollution: Peel Ply can prevent impurities such as dust from entering the composite material, ensuring that the surface of the product is clean.
Surface quality: Peel Ply helps improve the surface finish of composite materials and achieve better appearance.
Specifications:
| Code | Gram(g/m²) | Recommended TEMP ℃ | Width(mm) | Material | Roll Length(m) |
| CVP150 | 85 | 150 | 100-2300 | Polyester | 50-500 |
| CVP150 | 105 | 150 | 100-2300 | Polyester | 50-500 |
| CVP200 | 85 | 200 | 100-2300 | PA6 | 50-500 |
| CVP200 | 105 | 200 | 100-2300 | PA6 | 50-500 |
| CVP230 | 85 | 230 | 100-2300 | PA66 | 50-500 |
| CVP230 | 105 | 230 | 100-2300 | PA66 | 50-500 |
Specifications:
|
2 Layers |
Flow Media | Peel Ply | Release Film | Width (mm) |
| CVMW160 | / | CVR120 | 1450 | |
| 160g/m², 120℃, Green, Woven | 30μm, 120℃, Red, PE, Perforated | |||
| CVME200 | / | CVR150 | 1450 | |
| 200g/m², 120℃, Green, Extruding | 35μm, 150℃, Red, PE, Perforated | |||
| CVME230 | / | CVR230 | 1450 | |
| 230g/m², 120℃, Green, Extruding | 50μm, 230℃, Blue, PP, Perforated |

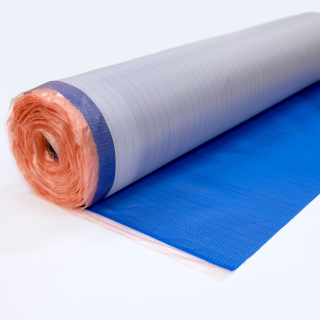

3 Layer Flow Media
3 layer flow media is mainly used in vacuum infusion process, it can make the resin fast infiltrate into any part of the products. Save part of the vacuum infusion process and greatly improve efficiency.
Material:
Flow Media:1430 Width, 140g/m², 120℃
Release Film:1450 Width, 30um, 110℃
Peel Ply Polyester:1500 Width, 85g/m², 150℃
Specifications：
|
3 Layers |
Flow Media | Peel Ply | Release Film | Width (mm) |
| CVMW100 | CVP150 | CVR120 | 1450 | |
| 100g/m², 120℃, Green, Weaving | 85g/m², 150℃, Polyester | 30μm, 120℃, Red, PE, Perforated | ||
| CVME200 | CVP200 | CVR150 | 1450 | |
| 200g/m², 120℃, Green, Extruding | 85g/m², 200℃, PA6 | 35μm, 150℃, Red, PE, Perforated | ||
| CVME230 | CVP230 | CVR230 | 1450 | |
| 230g/m², 120℃, Green, Extruding | 85g/m², 230℃, PA66 | 50μm, 230℃, Blue, PP, Perforated |

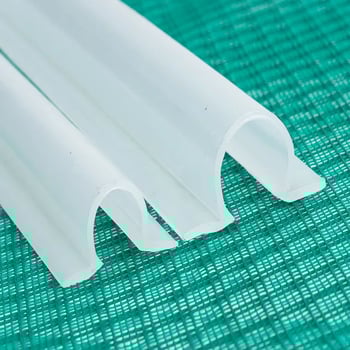

Omega tube
The Ω tube is a critical resin flow guide in the vacuum infusion process. Its unique spiral groove structure ensures that the resin quickly and evenly penetrates into the fiber under vacuum pressure and strengthens the material. It can be used in temperatures ranging from -20°C to 150°C. Its excellent flexibility and vacuum tightness allow it to conform to complex mold shapes, significantly improving infusion efficiency and success rates. It is an ideal choice for applications in wind power, marine, and aerospace.
Specifications:
| Code | Inner Diameter (mm) |
Outside Diameter (mm) |
Color | Packing Way |
| φ12 | 12 | 16 | Transparent | 2m/pcs |
| φ16 | 16 | 18 | Transparent | 2m/pcs |
| φ18 | 18 | 21 | Transparent | 2m/pcs |

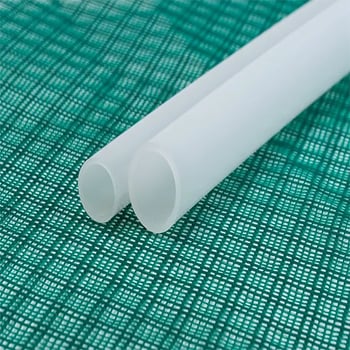

Resin Flow Tube
Flow tube is mainly used in vacuum infusion and prepreg process, feeding channel for resin.
Specifications:
| Code | Inner Diameter (mm) |
Outside Diameter (mm) |
Recommended TEMP ℃ | Material | Color | Packing Way |
| FTφ12 | 10 | 12 | 80 | PE | Transparent | 200m/roll |
| FTφ12 | 10 | 12 | 120 | PP | Transparent | 200m/roll |
| FTφ16 | 13 | 16 | 80 | PE | Transparent | 200m/roll |
| FTφ16 | 13 | 16 | 120 | PP | Transparent | 200m/roll |
| FTφ20 | 17 | 20 | 80 | PE | Transparent | 200m/roll |
| FTφ20 | 17 | 20 | 120 | PP | Transparent | 200m/roll |

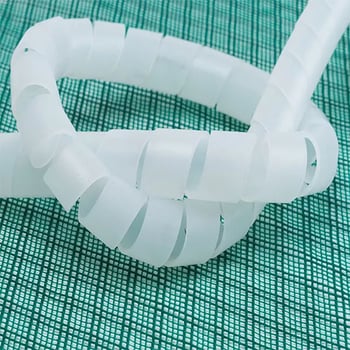

Resin Infusion Spiral Tubing
Spiral Tubing is a resin infusion standard and is ideally suited for in-bag vacuum line extenders or resin feed lines. This tubing is often used in vacuum infusion to allow vacuum pressure to be easily dispersed around a part. To ensure resin flow is not impeded, we recommend wrapping tubing in nylon or polyester peel ply.
Specifications:
| Code | Inner Diameter (mm) |
Outside Diameter (mm) |
Recommended TEMP ℃ | Material | Color | Packing Way |
| SWφ12 | 9 | 12 | 80 | PE | Transparent | 50m/roll |
| SWφ12 | 9 | 12 | 120 | PP | Transparent | 50m/roll |
| SWφ14 | 11 | 14 | 80 | PE | Transparent | 50m/roll |
| SWφ14 | 11 | 14 | 120 | PP | Transparent | 50m/roll |
| SWφ16 | 13 | 16 | 80 | PE | Transparent | 50m/roll |
| SWφ16 | 13 | 16 | 120 | PP | Transparent | 50m/roll |

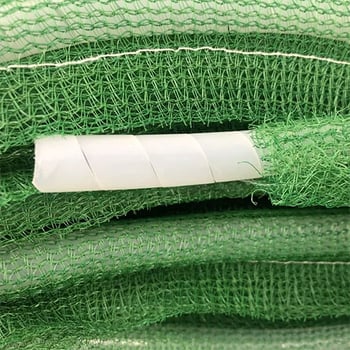

Resin Infusion Spiral Tubing With Mesh
Spiral warp combo with flow media is mainly used in vacuum infusion and prepreg process, providing the flow channel for resin.
Specifications:
| Code | Inner Diameter (mm) |
Outside Diameter (mm) |
Combo | Width(mm) | Gram for Mesh (g/m²) |
Color | Packing Way |
| SWCφ12 | 9 | 12 | Flow Media | Customized | 100-160 | *Green *White *Black |
100m/roll |
| SWCφ14 | 11 | 14 | Flow Media | Customized | 100-160 | *Green *White *Black |
100m/roll |
| SWCφ16 | 13 | 16 | Flow Media | Customized | 100-160 | *Green *White *Black |
100m/roll |
